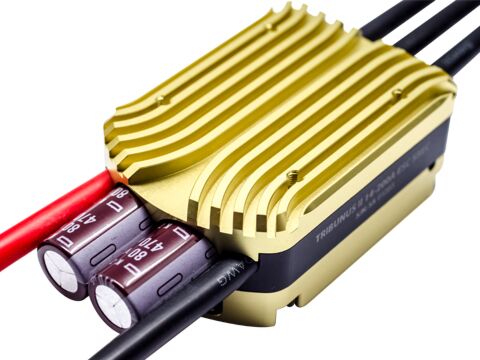

Scorpion Tribunus II 14-200A ESC SBEC
Product Description
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
Supported HvLi battery 14S total 61V.
Size: 83.4 x 45 x 27.6 mm
Weight: 218 Grams.
Download
Scorpion Tribunus II 14-200A - User Manual
Scorpion Tribunus Heli Program Sproto
Scorpion V Link II Cable CH340 Driver (For all ESC use)
How to update Tribunus firmware
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti
Specifications
| Max Continuous Current | 200 Amps |
| Peak Current | 250Amps |
| Operating Voltage Range | 14-61 Volts |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 20 Amps/1s @ 8.3 V |
| On Resistance | 0.55 mOhms *2 |
| Size | 83.4 x 45 x 27.6 mm (3.28 x 1.77 x 1.08 in) |
Included in the Box
Diode adaptor cable *1
Connection cable *2
Weight including packaging
609g
