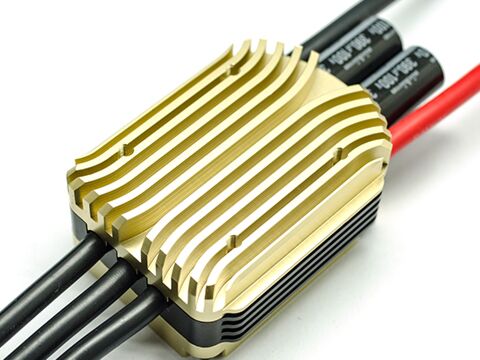

Scorpion Tribunus 14-300A ESC SBEC
Product Description
Airplane and Heli mode,
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry , JLog 3 ( more compatible device will be added gradually like Futaba..etc.)
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.
Supported HvLi battery 14S total 61V **.
Size: 90.2 x 50 x 31.7 mm
Weight: 238 Grams.
Download
Scorpion Tribunus 14-300A - User Manual
Scorpion Tribunus Heli Program Sproto
Scorpion V Link II Cable CH340 Driver (For all ESC use)
How to update Tribunus firmware
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO
How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Jeti
Specifications
| Max Continuous Current | 300 Amps |
| Peak Current | 400Amps |
| Operating Voltage Range | 14-61 Volts ** |
| BEC Output voltage: | 5.1V to 8.3V adjustable. |
| Max Continuous BEC Output | 10 Amps @ 8.3 V |
| Peak BEC Output | 30 Amps/1s @ 8.3 V |
| On Resistance | 0.65 mOhms *2 |
| Size | 90.2 x 50 x 31.7 mm (3.55 x 1.96 x 1.24 in) |
| Weight (Without Connectors) | 238g (8.39 oz) |
| Drive frequency | 8kHz - 32kHz |
Included in the Box
Diode adaptor cable *1
Connection cable *2
Weight including packaging
627g
