COMBOVE TYPE IV 4025-890KV
As low as
$140.00
In stock
Only %1 left
SKU
COMBOVE TYPE IV 4025-890KV
Apply Payment Method
Specifications
| Stator Diameter | 40 |
| Stator Thickness | 25 mm |
| No. of Stator Arms | 12 |
| Magnet Poles | 10 |
| Motor Wind | 5+4 Turn Delta |
| Motor Wire | 1-Strand 1.3 mm |
| Motor Kv | 890KV RPM/Volt |
| No-Load Current (IO/10v) | 2.78 Amps |
| Motor Resistance (RM) | 0.012 Ohms |
| Max Continuous Current | 98 Amp |
| Max Continuous Power | 2880 Watt |
| Weight | 350 Grams |

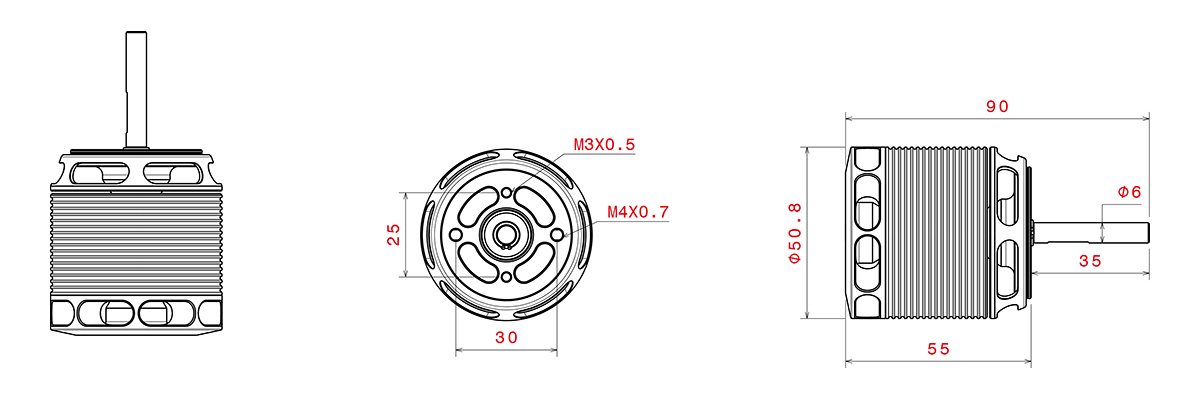

| Outside Diameter | 50.8 mm |
| Shaft Diameter | 6 mm |
| Body Length | 54.5 mm |
| Overall Shaft Length | 91 mm |
| Max Lipo Cell | 8s |
| Peak Continuous Current | 115 Amps (5 seconds) |
| Peak Continuous Power | 3320 Watts (5 seconds) |
| Motor Timing | 5deg~12deg |
| Drive Frequency | 8kHz~32khz |
