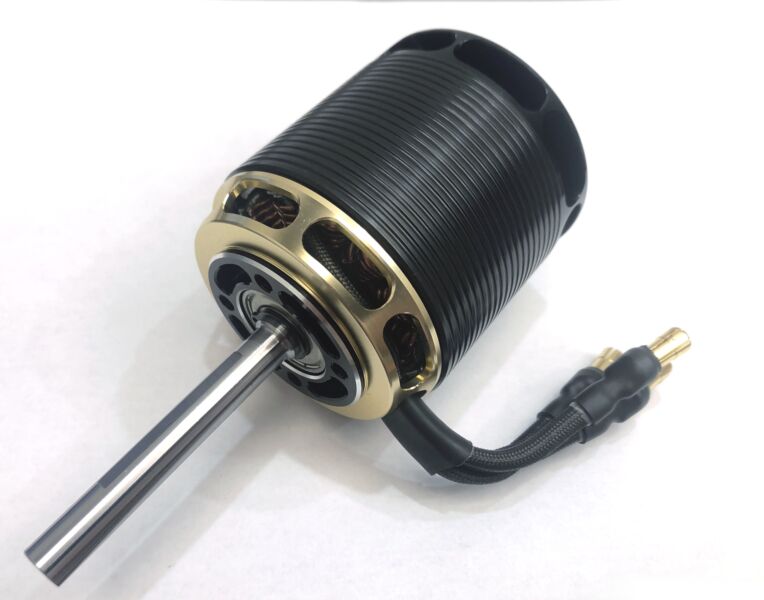

COMBOVE TYPE II 4735-410KV-1.4MM
As low as
$280.00
In stock
Only %1 left
SKU
COMBOVE TYPE II 4735-410KV-1.4MM
Apply Payment Method
- 1.4 mm ultra-wide copper wire
- Pure manual winding
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation
Specifications |
|
| Stator Diameter | 47 mm |
| Stator Thickness | 35 mm |
| No. of Stator Arms | 12 |
| Magnet Poles | 10 |
| Motor Wind | 6T+5Turn Delta |
| Motor Wire | 1-Strand 1.4mm |
| Motor Kv | 410 KV RPM / Volt |
| No-Load Current (Io/10V) | 1.72 Amps |
| Motor Resistance (Rm) | 0.016 Ohms |
| Max Continuous Current | 105 Amps |
| Max Continuous Power | 5800 Watts |
| Weight | 620 Grams |
| Outside Diameter | 58.8 mm |
| Shaft Diameter | 6 mm |
| Body Length | 67.5 mm |
| Overall Shaft Length | 117.5 mm |
| Max Lipo Cell | 12s |
| Max Peak Current | 180 A (2 seconds) |
| Max Peak Power | 9560 Watts (2 seconds) |
| Motor Timing | 5deg-8deg |
| Drive Frequency | 8kHz-32khz |
