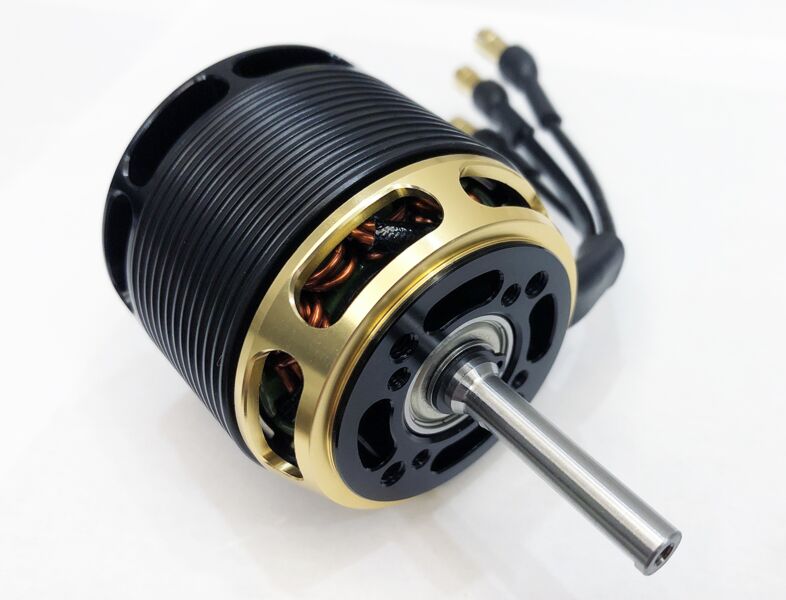

COMBOVE TYPE II 4220-600KV
As low as
$195.00
In stock
Only %1 left
SKU
COMBOVE TYPE II 4220-600KV
Apply Payment Method
- NSK 698ZZ Bearing (8x19x6mm)
- 1.1mm ultra-wide copper wire
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation(Third Generation)
Specifications
| Stator Diameter | 42 mm |
| Stator Thickness | 20 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 7T+6T Delta |
| Motor Wire | 1-Strand 1.0 mm |
| Motor Kv | 600KV RPM/Volt |
| No-Load Current (Io/10V) | 0.96 Amps |
| Motor Resistance (RM) | 0.025 Ohms |
| Max Continuous Current | 78Amps |
| Max Continuous Power | 3320 Watts |
| Weight | 320 Grams |
| Outside Diameter | 52.5 mm |
| Shaft Diameter | 6 mm |
| Body Length | 49.5 mm |
| Overall Shaft Length | 81.5 mm |
| Max Lipo Cell | 10S-12s |
| Max Peak Current | 115A (3 seconds) |
| Max Peak Power | 4520 Watts (3 seconds) |
| Motor Timing | 5deg |
| Drive Frequency | 8kHz to 32kHz |
