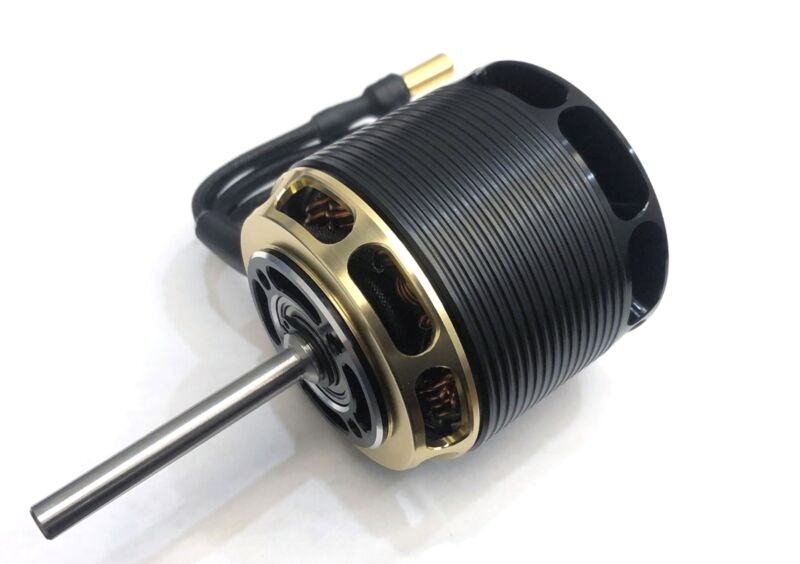

Combove Type Ⅲ 4725-520kv-1.4mm
As low as
$220.00
In stock
Only %1 left
SKU
Type Ⅲ 4725-520kv-1.4mm
Apply Payment Method
- 1.4mm ultra-wide copper wire
- Pure manual winding
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation
Specifications
| Stator Diameter | 47 mm |
| Stator Thickness | 25 mm |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 6T+6T Delta |
| Motor Wire | 1-Strand 1.4 mm |
| Motor Kv | 520KV RPM/Volt |
| No-Load Current (Io/20V) | 4.1 Amps |
| Motor Resistance (RM) | 0.014 Ohms |
| Max Continuous Current | 110 Amps |
| Max Continuous Power | 4550 Watts |
| Weight | 500 Grams |
| Outside Diameter | 58.5 mm |
| Shaft Diameter | 6 mm |
| Body Length | 57.5 mm |
| Overall Shaft Length | 112 mm |
| Max Lipo Cell | 12s |
| Max Peak Current | 240A (2 seconds) |
| Max Peak Power | 10800 Watts (2 seconds) |
| Motor Timing | 5deg to 15 deg |
| Drive Frequency | 8kHz |
