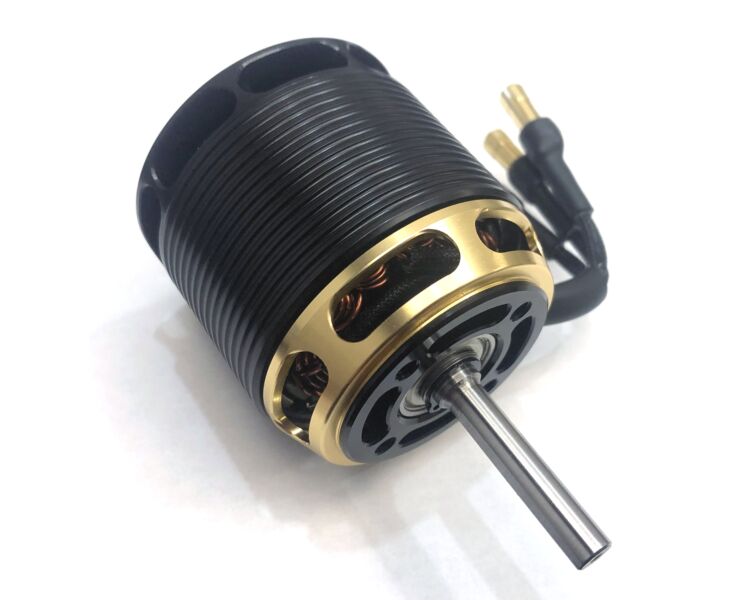

Combove Type Ⅲ 4225-500kv

As low as $210.00
In stock
Only %1 left
SKU
Combove Type Ⅲ 4225-500kv
Apply Payment Method
Apply Payment Method
  • NSK 698ZZ Bearing (8x19x6mm)
  • 1.2mm ultra-wide copper wire
  • 180 centigrade NdFeB Magnet
  • efficient & large torque
  • Optimized ventilation



Specifications

Stator Diameter 42 mm
Stator Thickness 25 mm
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind7 7T+6T Delta
Motor Wire 1-Strand 1.2 mm
Motor Kv 500KV RPM/Volt
No-Load Current (Io/10V) 0.74 Amps
Motor Resistance (RM) 0.019 Ohms
Max Continuous Current 85 Amps
Max Continuous Power 3650 Watts
Weight 370 Grams
Outside Diameter 52.5 mm
Shaft Diameter 6 mm
Body Length 54.5 mm
Overall Shaft Length 94.5 mm
Max Lipo Cell 12s
Max Peak Current 135A (5 seconds)
Max Peak Power 5800 Watts (5 seconds)
Motor Timing 5deg to 15 deg
Drive Frequency 8kHz to 32kHz
