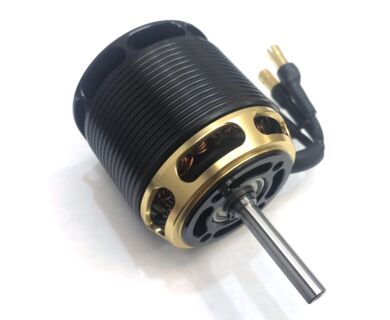

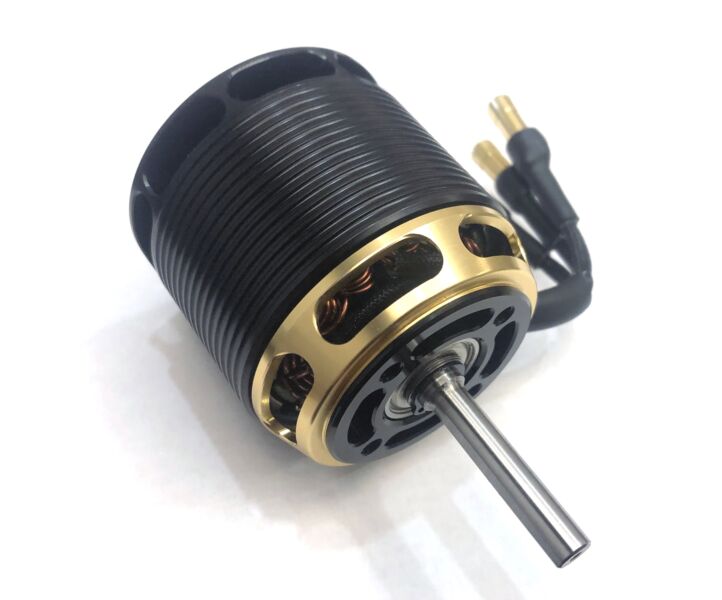

Combove Type Ⅲ 4225-1050kv
As low as
$210.00
In stock
Only %1 left
SKU
Combove Type Ⅲ 4225-1050kv
Apply Payment Method
- NSK 698ZZ Bearing (8x19x6mm)
- 1.1mm ultra-wide copper wire (C+ Class)
- 180 centigrade NdFeB Magnet
- efficient & large torque
- Optimized ventilation
Specifications
| Stator Diameter | 42 mm |
| Stator Thickness | 25 mm |
| No. of Stator Arms | 12 |
| Magnet Poles | 10 |
| Motor Wind | 3+3 Turn Delta |
| Motor Wire | 2-Strand 1.1 mm |
| Motor Kv | 1050KV RPM/Volt |
| No-Load Current (IO/10v) | 3.5 Amps |
| Motor Resistance (RM) | 0.005 Ohms |
| Max Continuous Current | 130 Amp |
| Max Continuous Power | 2800 Watt |
| Weight | 360 Grams |
| Outside Diameter | 52.5 mm |
| Shaft Diameter | 6 mm |
| Body Length | 54.5 mm |
| Overall Shaft Length | 94.5 mm |
| Max Lipo Cell | 6s |
| Peak Continuous Current | 180 Amps (5 seconds) |
| Peak Continuous Power | 4320 Watts (5 seconds) |
| Motor Timing | 5deg~12deg |
| Drive Frequency | 8kHz~32khz |
